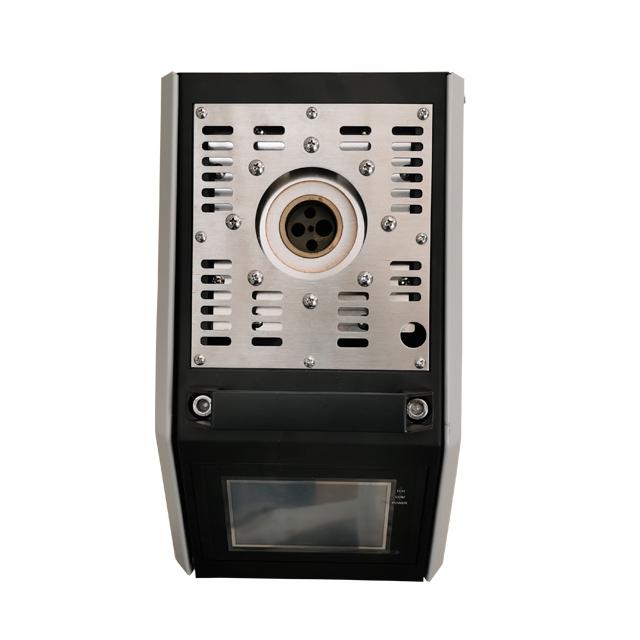

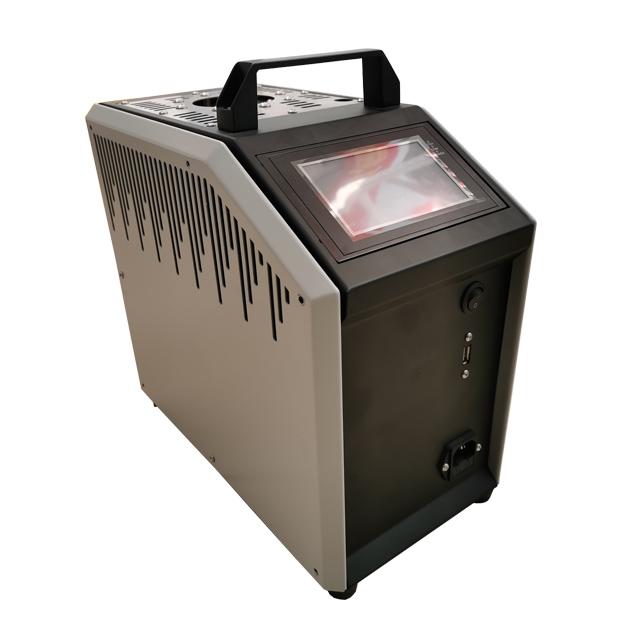

High precision temperature instruments dry well calibration bath adopts high stability temperature controller,the temperature range is 90℃-300℃.
The heating block adopts alloy material with better heat conduction.It can be used to test and calibrate various thermocouples and RTD.
Technical Parameters of High precision temperature instruments dry well calibration bath
| Model |
DY-GTL |
| Temperature Range |
90℃~300℃ |
| Display Resolution |
0.1/0.01℃ |
| Temperature Accuracy |
±0.2℃ |
| Depth of checking hole |
155mm
|
| Diameter of heat block |
30mm |
| Control Mode |
Touch screen |
| Diameter of checking hole |
6.5mm,6.5mm,8mm,10mm(customizable) |
| Power(w) |
1800w |
| Power Supply |
220V/110V 50/60HZ |
| Working Condition |
15℃-25℃ 80%RH
|
TAIAN DEMEI ELECTROMECHANICAL EQUIPMENT CO.,LTD
Taian Demei is a manufacturer combine with development,design,production,sales specialized in versatile industrial instruments.
Our products include:
High precision temperature instruments dry well calibration bath
Dry block temperature calibration bath for thermocouples and RTD
high temperature dry block calibrator,
low temperature dry well calibration bath,
ultralow temperature dry well calibration well,
temperature liquid bath calibrator,
infrared thermometer temperature calibration well,
temperature and humidity calibration chamber,
infrared thermometer calibrator,
thermostatic bath,
electronic freezing device etc.
Welcome your inquiry and purchase!
