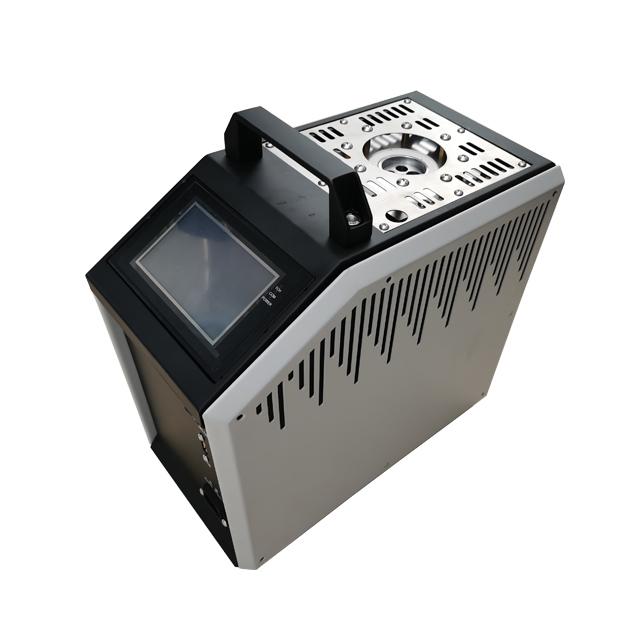

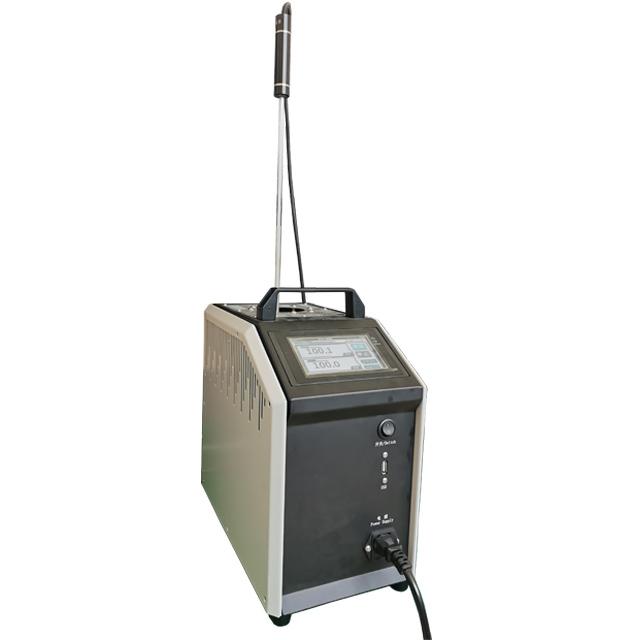

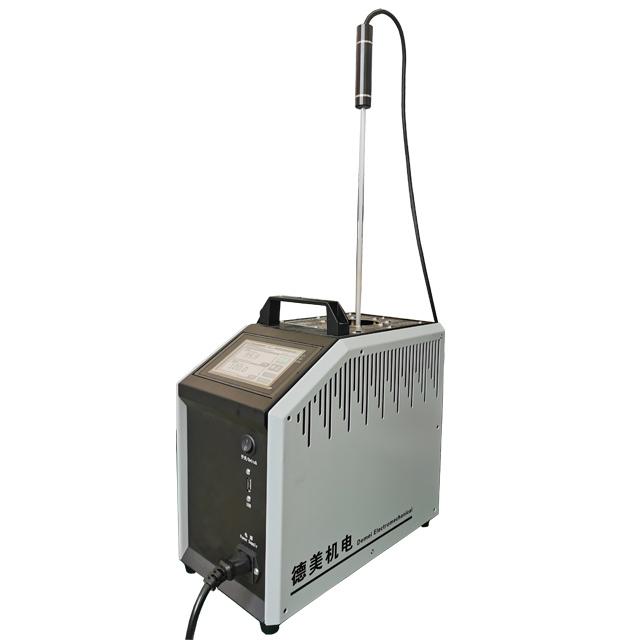

DY-GTL Series Touch Screen Dry Block Temperature Calibrator adopts high stability temperature controller,the temperature range is -20℃-150℃.
The heating block adopts alloy material with better heat conduction.It can be used to test and calibrate various thermocouples and RTD.
Technical Parameters of DY-GTL Series Touch Screen Dry Block Temperature Calibrator
| Model |
DY-GTL |
| Temperature Range |
-20℃~150℃ |
| Display Resolution |
0.1/0.01℃ |
| Temperature Accuracy |
±0.2℃ |
| Depth of checking hole |
150mm
|
| Diameter of heat block |
30mm |
| Control Mode |
Touch screen |
| Diameter of checking hole |
4mm,6mm,6mm,8mm,10mm(customizable) |
| Power(w) |
500w |
| Power Supply |
220V/110V 50/60HZ |
| Working Condition |
15℃-25℃ 80%RH
|
TAIAN DEMEI ELECTROMECHANICAL EQUIPMENT CO.,LTD
Taian Demei is a manufacturer combine with development,design,production,sales specialized in versatile industrial instruments.
Our products include:
DY-GTL Series Touch Screen Dry Block Temperature Calibrator
Dry block temperature calibration bath for thermocouples
High resolution liquid bath thermostatic calibration bath,
high temperature dry block calibration well,
low temperature dry block calibration well,
ultralow temperature dry well calibration well,
infrared thermometer temperature calibration well,
temperature and humidity calibration chamber,
infrared thermometer calibrator,
thermostatic bath,
electronic freezing device etc.
Welcome your inquiry and purchase!
